Regulator Rectifier – Kawasaki / Suzuki / Honda / Arctic Cat / Can-...

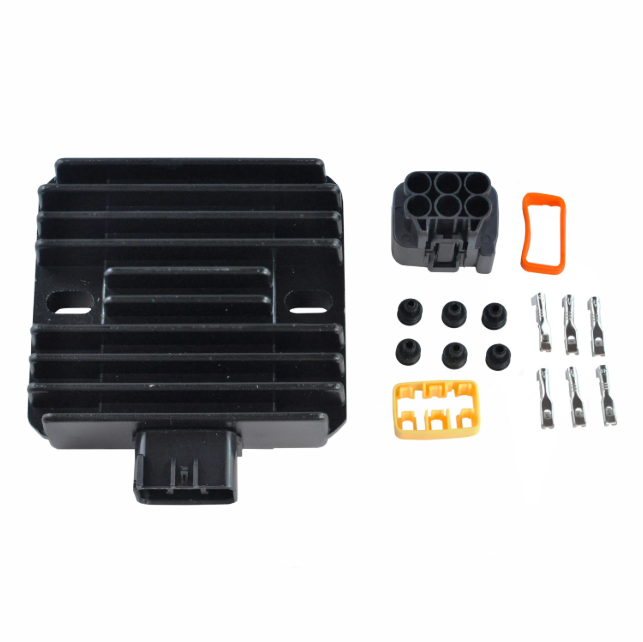

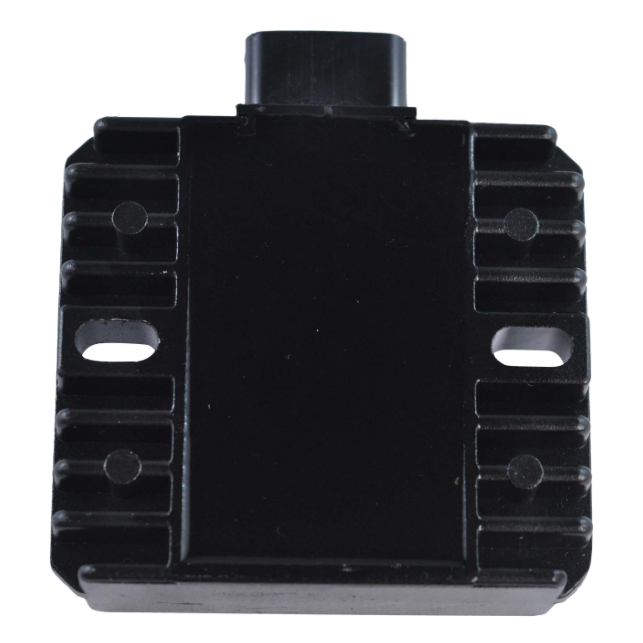

A direct-fit replacement regulator rectifier compatible with a wide range of ATV, UTV, motorcycle, and PWC models from Arctic Cat, Can-Am, Honda, Kawasaki, Suzuki, and Yamaha produced between 1992 and 2021. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink for enhanced charging performance. Note: the Suzuki DL V-Strom uses two different regulator rectifier types - this is the direct connector type (RM30806). If your V-Strom has lead wires coming directly off the unit, see RM30F04 instead. Verify your model and year against the fitment table before ordering.
Fitment
Arctic Cat – ATV and UTV
| Model | Year Range |
|---|---|
| 450 | 2010–2012 |
| 500 Automatic | 2013–2017 |
| 550 EFI F/C | 2010–2013 |
| 550 H1 EFI F/C | 2010 |
| 650 H1 | 2005–2011 |
| 700 | 2006–2012 |
| 700 H1 | 2008–2011 |
| 1000 | 2011–2014 |
| 1000 XT | 2013–2014 |
| Mudpro 650 | 2010 |
| Mudpro 700 | 2009–2012 |
| Mudpro 1000 | 2010–2012 |
| Prowler 550 | 2009–2014 |
| Prowler 650 | 2006–2009 |
| Prowler 700 | 2008–2012 |
| Prowler 1000 | 2009–2014 |
| TBX 650 | 2007, 2009 |
| TBX 700 | 2010–2012 |
| Thundercat 1000 | 2008–2010 |
| TRV 400 | 2009–2014 |
| TRV 450 | 2011–2012 |
| TRV 500 | 2013–2015 |
| TRV 550 | 2010–2013 |
| TRV 650 | 2007–2009 |
| TRV 700 | 2008–2012 |
| TRV 700 H1 EFI F/C | 2010 |
| TRV 1000 | 2009–2012 |
| XR 500 | 2015 |
Can-Am – ATV
| Model | Year Range |
|---|---|
| Outlander 330 | 2004–2005 |
| Outlander 400 | 2003–2005 |
| Outlander 450 | 2020–2021 |
| Outlander 570 | 2020 |
| Outlander 650 EFI | 2020–2021 |
| Outlander 850 | 2020–2021 |
| Outlander Max 400 | 2004–2005 |
| Outlander Max 450 | 2020–2021 |
| Outlander Max 570 | 2020 |
| Renegade 570 | 2020–2021 |
| Renegade 850 | 2020–2021 |
Honda – ATV
| Model | Year Range |
|---|---|
| TRX 500 Fourtrax Foreman Rubicon FA | 2001–2004 |
| TRX 500 Fourtrax Foreman Rubicon FGA | 2004 |
Kawasaki – ATV and UTV
| Model | Year Range |
|---|---|
| KAF 620 Mule 3000 | 2001–2008 |
| KAF 620 Mule 3010 | 2001–2008 |
| KAF 620 Mule 3020 | 2001–2002 |
| KAF 620 Mule 4000 | 2009–2020 |
| KAF 620 Mule 4010 | 2009–2020 |
| KRF 750 Teryx | 2008–2013 |
| KVF 650 Brute Force HD i | 2006–2010 |
| KVF 650 Brute Force i | 2006–2013 |
| KVF 750 Brute Force i | 2005–2011 |
Suzuki – ATV
| Model | Year Range |
|---|---|
| LT-F4 King Quad 300 | 1992–1998 |
| LT 160 E Quadrunner | 2003–2004 |
| LTA 400 Eiger | 2002–2007 |
| LTA 400 KingQuad | 2008–2018 |
| LTA 450X KingQuad | 2007–2010 |
| LTA 500F Vinson | 2002–2007 |
| LTA 500X KingQuad | 2009, 2011–2018 |
| LTA 700X KingQuad | 2005–2007 |
| LTA 750 KingQuad | 2008–2017 |
| LTA 750 KingQuad AXi | 2018 |
| LTF 250 Quadrunner 2x4 | 2000–2002 |
| LTF 250F Quadrunner 4x4 | 1999–2001 |
| LTF 300F King Quad 4x4 | 1999–2002 |
| LTF 400 Eiger | 2002–2007 |
| LTF 400 KingQuad | 2008–2020 |
| LTF 500F Vinson | 2003–2007 |
Yamaha – ATV
| Model | Year Range |
|---|---|
| YFM 450 Grizzly EPS | 2011–2014 |
Key Features
- Direct OEM-specification replacement regulator rectifier
- Covers Arctic Cat, Can-Am, Honda, Kawasaki, Suzuki, and Yamaha ATV and UTV variants
- Year range 1992–2021
- Replaces OEM part numbers across all supported manufacturers

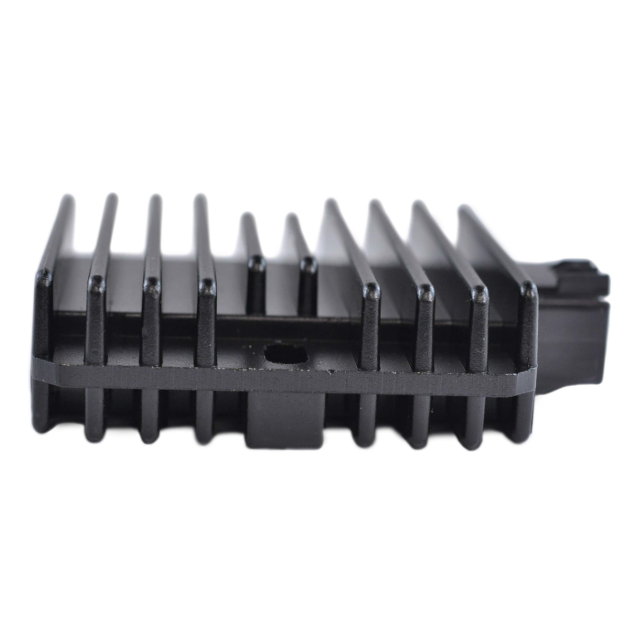

- Improved heat sink and higher-grade electrical components
- Note: for Suzuki DL V-Strom with lead wire type regulator, see RM30F04
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 0824-020 | Arctic Cat |
| 0824-037 | Arctic Cat |
| 710000908 | Can-Am |
| 31600-HN2-013 | Honda |
| 21066-0012 | Kawasaki |
| 21066-0030 | Kawasaki |
| 21066-0032 | Kawasaki |
| 21066-0033 | Kawasaki |
| 21066-0037 | Kawasaki |
| 21066-0043 | Kawasaki |
| 21066-0705 | Kawasaki |
| 21066-0712 | Kawasaki |
| 21066-0717 | Kawasaki |
| 21066-0720 | Kawasaki |
| 21066-0728 | Kawasaki |
| 21066-0729 | Kawasaki |
| 21066-0732 | Kawasaki |
| 21066-1127 | Kawasaki |
| 21066-3717 | Kawasaki |
| 21066-3718 | Kawasaki |
| 32800-06G00 | Suzuki |
| 32800-16A00 | Suzuki |
| 32800-19063 | Suzuki |
| 32800-26J02 | Suzuki |
| 32800-38F10 | Suzuki |
| 32800-42F00 | Suzuki |
| 32800-42F10 | Suzuki |
| 4XY-81960-00-00 | Yamaha |
| 5VN-81960-00-00 | Yamaha |
| 68V-81960-00-00 | Yamaha |
| 6D3-81960-00-00 | Yamaha |
| 6D3-81960-01-00 | Yamaha |
| 6S8-81960-00-00 | Yamaha |
| AKI6033 | Arrowhead |
| AYA6020 | Arrowhead |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |

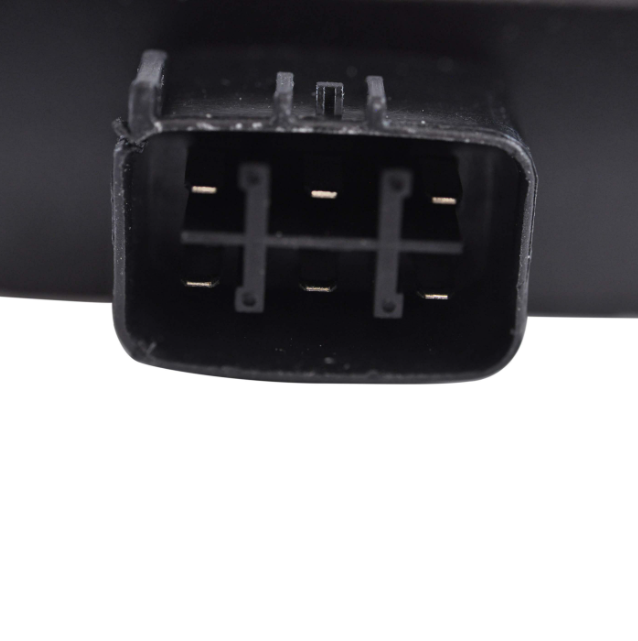

| Connector Type | Direct connector (see RM30F04 for lead wire variant) |
| Voltage | 12V |
| Application | Arctic Cat / Can-Am / Honda / Kawasaki / Suzuki / Yamaha |
| Year Range | 1992–2021 |
| ATV City Part Number | RM30806 |
| Condition | New |
