MOSFET Regulator Rectifier – Polaris RZR 570/900/1000 / Ranger 500/570/900/1000 / Sportsman / Scrambler / General / ACE – Replaces 4016868 / 4014856 – 2013–2018 is backordered and will ship as soon as it is back in stock.

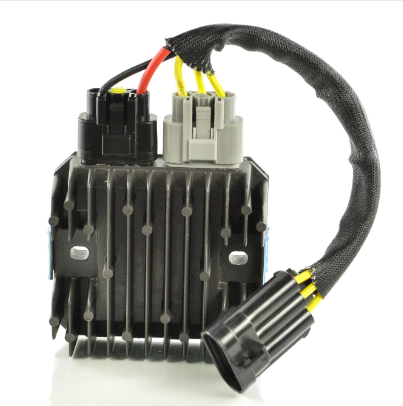

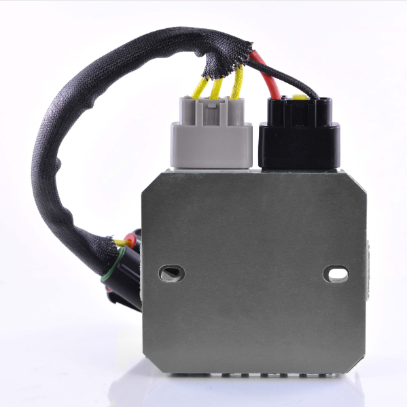

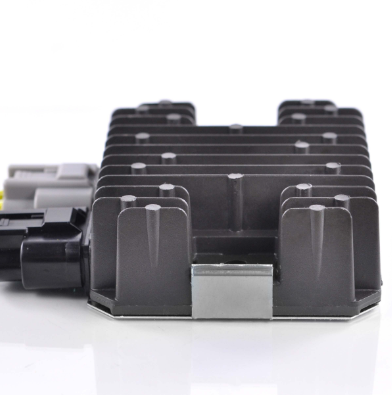

This MOSFET regulator rectifier is a high-performance solution specifically designed to address the known voltage regulator failure issues on 2013–2018 Polaris RZR 900/1000 models. It meets and exceeds Polaris RZR regulator recall Z-16-01-C specifications and features an RMSTATOR MOSFET circuit that runs cooler and uses less power than OEM silicon rectifiers. The automotive-grade wiring harness uses cross-link braided copper wire that resists heat, oil, acid, and gas, with OEM-quality Delphi connectors throughout.
Please note: suitable for certain 2016–2017 models with direct main harness connection. Models prior to 2016, or some 2016 RZR 1000 units, require a conversion harness. A Stage 3 front hood relocation kit upgrade is also available separately (RMS020-103779).
Fitment — Key Models (see full fitment chart for complete list)
| Model | Year Range |
|---|---|
| Polaris RZR 570 EFI / 570 S | 2017–2018 |
| Polaris RZR 900 / 900 S / 900 INTL / RZR 4 900 / 4 900 XP | 2014–2018 |
| Polaris RZR 900 XP Turbo / RZR 4 900 XP Turbo | 2016 |
| Polaris RZR 1000 / 1000 XP / 1000 XP INTL / RZR 4 1000 XP | 2014–2018 |
| Polaris RZR 1000 XP Turbo / RZR 4 1000 XP Turbo | 2016–2018 |
| Polaris Ranger 500 / 570 / 570 XP / Crew 570 | 2014–2018 |
| Polaris Ranger 900 XP / Crew 900 / Crew 900 XP | 2013–2018 |
| Polaris Ranger XP 1000 / Crew 1000 XP / 1000 Diesel | 2014–2018 |
| Polaris General 1000 / General 4 1000 | 2016–2018 |
| Polaris Scrambler 850 / 1000 XP / 1000 XP Euro | 2017–2018 |
| Polaris Sportsman 570 / 850 / 1000 XP (all variants) | 2017–2018 |
| Polaris ACE 500 / ACE 570 EFI / ACE 900 | 2017–2018 |
Key Features
| Feature | Detail |
|---|---|
| Type | MOSFET Regulator Rectifier |
| Recall Compliance | Meets and exceeds Polaris recall Z-16-01-C specifications |
| Technology | RMSTATOR MOSFET circuit — runs cooler than OEM silicon rectifiers |

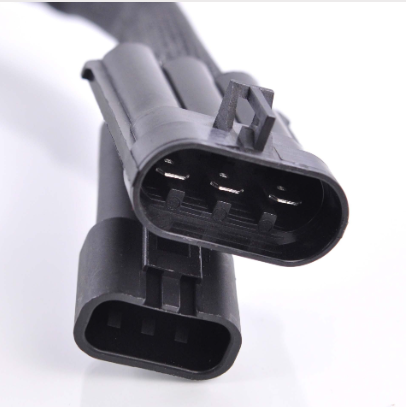

| Wiring | Automotive-grade cross-link braided copper harness with Delphi connectors |
| Fitment | Plug & Ride — fast, easy installation |
| Upgrade Option | Stage 3 front hood relocation kit available separately (RMS020-103779) |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 4016868 | Polaris |
| 4014856 | Polaris |
| 4013978 | Polaris |
| 4015816 | Polaris |
| 2206473 | Polaris |
| 2206620 | Polaris |
Specifications
| Specification | Detail |
|---|---|
| Component | MOSFET Regulator Rectifier |
| Application | Polaris RZR / Ranger / Sportsman / Scrambler / General / ACE |
| Engine Variants | 499cc / 567cc / 850cc / 875cc / 952cc / 999cc / 1028cc |
| Year Range | 2013–2018 |
| Installation Note | Conversion harness required for pre-2016 and some 2016 RZR 1000 models |
| Condition | New |
