This Wing-Type Brake Adjust Nut kit is a five-pack replacement designed to restore proper drum brake adjustment on TRX-series ATVs. It’s built to drop straight into rear drum brake assemblies across several TRX models listed in the fitment guide, returning precise shoe clearance and consistent stopping power. Replacing worn wing-type nuts helps maintain proper drum brake operation under trail, farm, and worksite conditions. This five-pack delivers a ready-to-install solution that keeps braking predictable season after season.

With time and use, wing-type adjusters wear, leading to loose adjustment, uneven shoe wear, and brake drag. This aftermarket replacement provides a direct-fit solution that mirrors OEM geometry, so you get consistent adjustment without hunting for the right OEM part. The 5-pack gives you spares for multiple drum brakes or future maintenance.

Comprehensive Vehicle Fitment

Product Specifications

OEM & Aftermarket Cross-Reference Information

What's Included

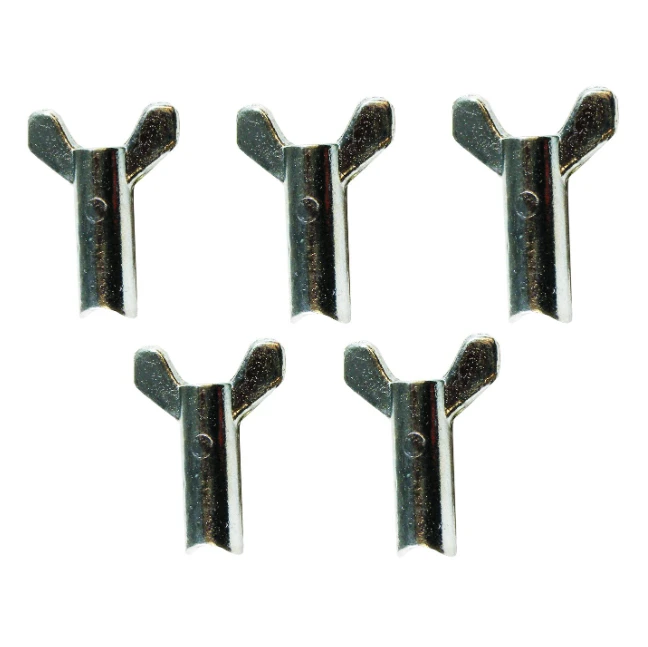

Each box includes five Wing-Type Brake Adjust Nut components ready for installation in rear drum brake systems.

• Wing-Type Brake Adjust Nut — 5 pieces in the pack

Related parts like springs, rods, or cables are not included.

Why Choose This Aftermarket Replacement?

• Direct-Fit Compatibility: Precisely matches the OEM geometry for TRX-series rear drum brakes, ensuring smooth adjustment and pedal feel.
• OEM Cross-Reference: Backed by well-known Honda OEM cross-refs (43459-HM5-A10, 43459-VM4-000, 43459-HB2-000) for easy substitution.
• Premium Materials: Made from sturdy steel with a corrosion-resistant zinc finish to withstand off-road mud, water, and temperature swings.
• Performance Restoration: Reinstates accurate shoe-to-drum clearance, helping restore confident braking and even wear on the brake shoes.
• Cost-Effective Pack: Five units in one pack lets you service multiple drums or keep durable spares on hand for quick maintenance.
• Trail- and Farm-Ready Durability: Built to endure vibration, dirt ingress, and constant adjustment cycles common in off-road use.

Installation Notes:

• Remove the wheel and access the rear brake drum; inspect the existing adjuster and shoe condition before swapping.
• Clean threads on the adjuster cavity and ensure the wing-nut sits flush without cross-threading; replace only if threads show wear or galling.
• Install the new wing-type nut in the same orientation as the removed part; rotate the adjuster by hand to verify smooth operation before reassembly.
• After installation, reassemble the drum, reinstall the wheel, and spin the tire to feel for drag; if drag is present, adjust incrementally until drag-free play is achieved.
• Test the brake with the wheel off the ground (careful of movement) before loading; finally, perform a controlled brake test on a safe area to confirm proper shoe clearance.
• Avoid lubricants on the adjuster threads; keep them clean and dry to preserve adjustment accuracy.

Why Upgrade?

Running a worn wing-type brake adjuster can lead to sloppy or inconsistent braking, uneven shoe wear, and potential brake drag, all of which compromise stopping power. Upgrading to this five-pack restores reliable shoe adjustment and consistent drum-brake performance, giving you dependable braking in demanding trail or farm conditions.
