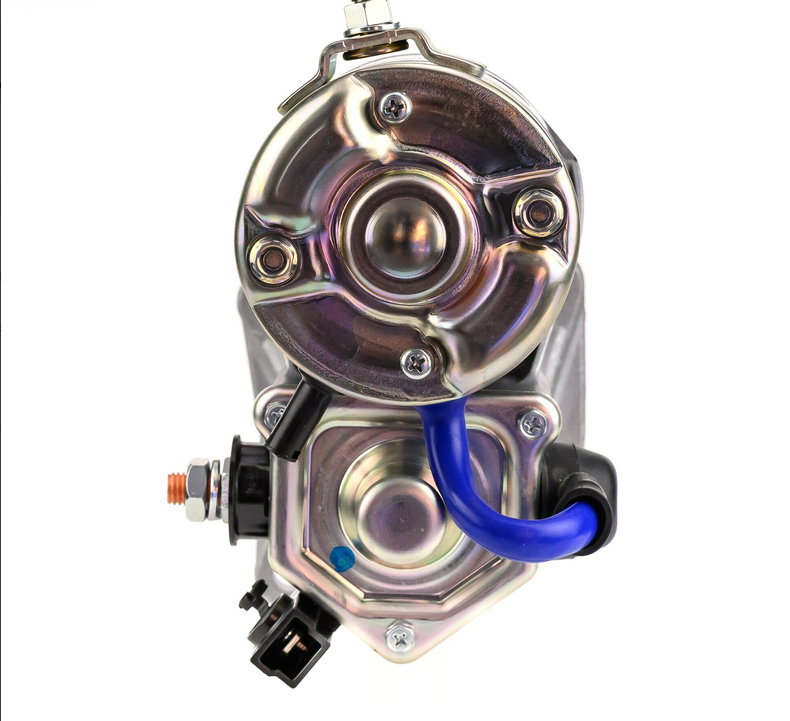

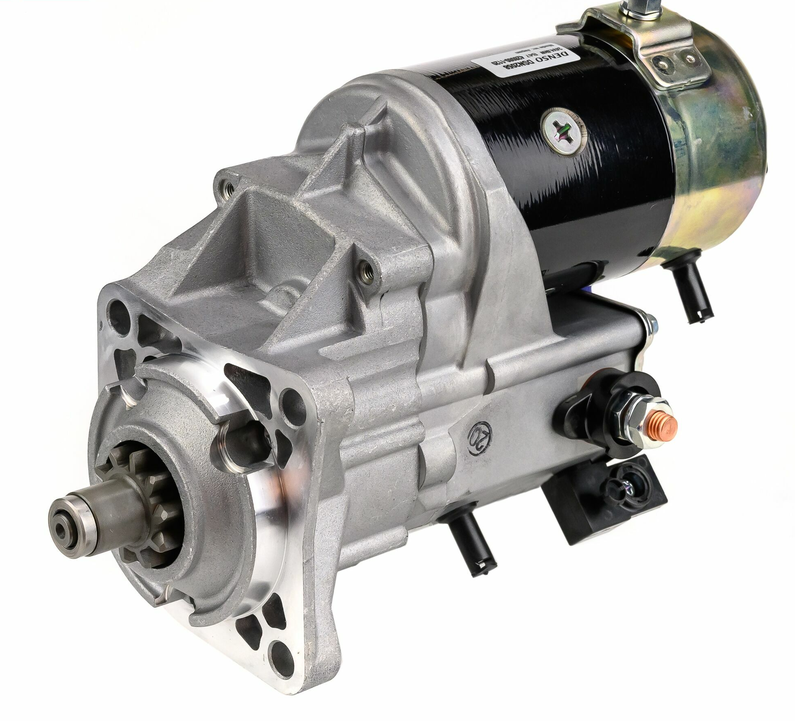

Denso gear reduction starter motor with a nominal voltage of 24V and nominal power of 4.5kW. It has a 10-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M10) and terminal 50 (M5).

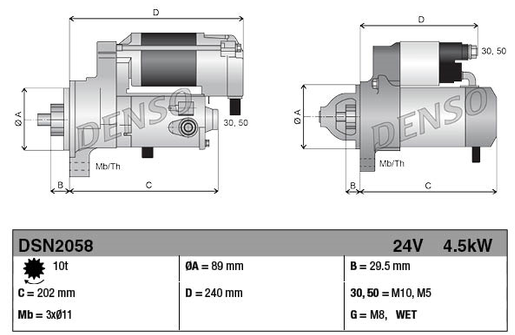

The unit has an installation length of 240.0mm, a fitting diameter of 89.0mm, and a spacing of 29.5mm from flange to flywheel. It is fitted using 3 x 11.0mm holes. This part carries the reference number DSN2058 and has confirmed cross-references to Caterpillar and Perkins applications.
Fitment
| Brand | Series/Type |
|---|---|
| Caterpillar | Not specified (see OE cross-reference) |
| Perkins | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 24V, nominal power 4.5kW
- 10-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M10) and terminal 50 (M5) connections
- Confirmed fitment: Caterpillar and Perkins engines (specific models not supplied)
- 4 OE cross-reference numbers (Caterpillar, Perkins and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2058 | Reference number |
| 428000-1120 | Denso |
| 428080-1120 | Denso |
| 225-3150 | Caterpillar |
| 2873K406 | Perkins |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 24V |
| Nominal power | 4.5kW |
| No. of pinion teeth | 10 |
| Holes/PCD | 3 x 11.0mm |
| Spacing flange to flywheel | 29.5mm |
| Installation length | 240.0mm |
| Fitting diameter | 89.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), terminal 50 (M5) |
| Part number | 3780010142 |
| Reference number | DSN2058 |
| Weight | 9.00 kg |
| EAN | 8717613114452 |
| Condition | New |
