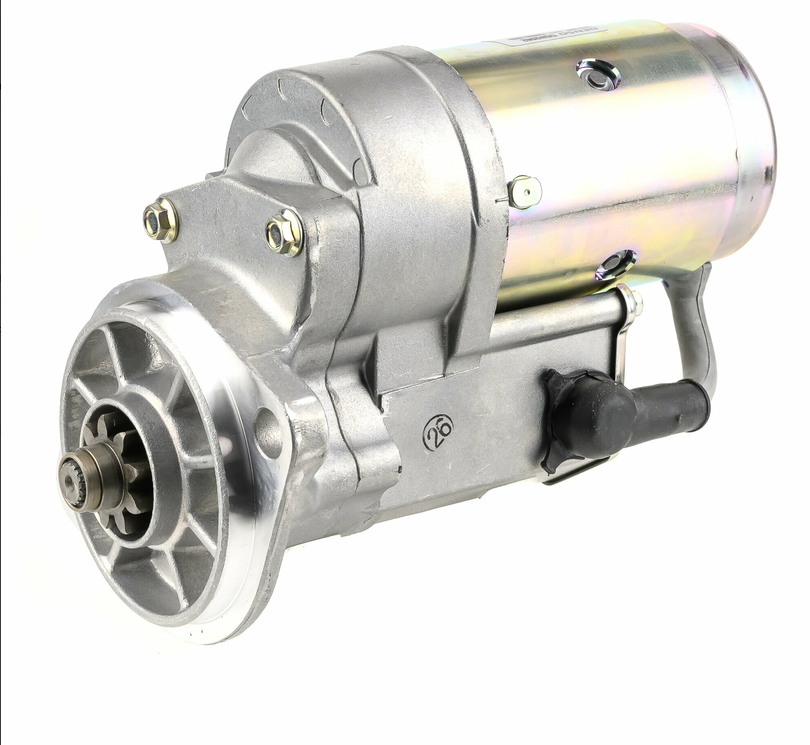

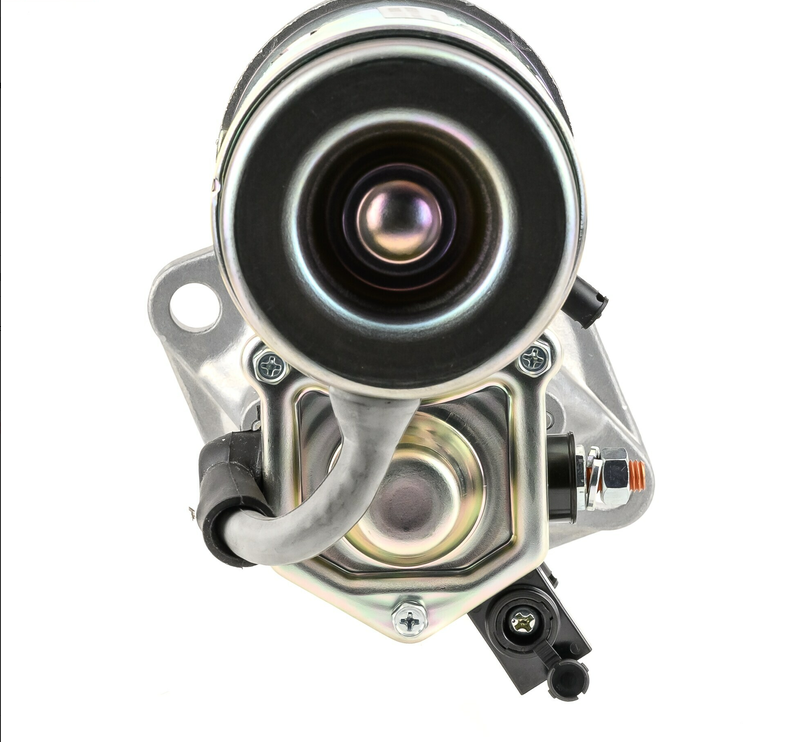

Denso gear reduction starter motor with a nominal voltage of 12V and nominal power of 2.2kW. It has a 9-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M8) and terminal 50 (M5).

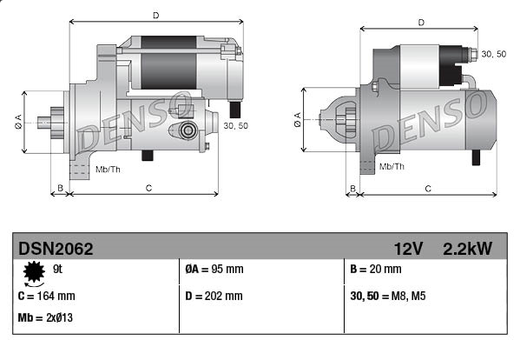

The unit has an installation length of 202.0mm, a fitting diameter of 95.0mm, and a spacing of 20.0mm from flange to flywheel. It is fitted using 2 x 13.0mm holes. This part carries the reference number DSN2062 and has confirmed fitment to Komatsu wheel loader models.
Fitment
| Brand | Series/Type |
|---|---|
| Komatsu | Series -6: WA100M-6 |
| Komatsu | Series -7: WA80M-7, WA100M-7 |
Key Features
- Nominal voltage 12V, nominal power 2.2kW
- 9-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M8) and terminal 50 (M5) connections
- Confirmed fitment: Komatsu WA80M and WA100M wheel loaders (Series -6 and -7)
- 4 OE cross-reference numbers (Komatsu and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2062 | Reference number |
| 428000-2650 | Denso |
| 428080-2650 | Denso |
| 600-861-1410 | Komatsu |
| 600-863-1410 | Komatsu |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 12V |
| Nominal power | 2.2kW |
| No. of pinion teeth | 9 |
| Holes/PCD | 2 x 13.0mm |
| Spacing flange to flywheel | 20.0mm |
| Installation length | 202.0mm |
| Fitting diameter | 95.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), terminal 50 (M5) |
| Part number | 3780010145 |
| Reference number | DSN2062 |
| Weight | 6.41 kg |
| Condition | New |
