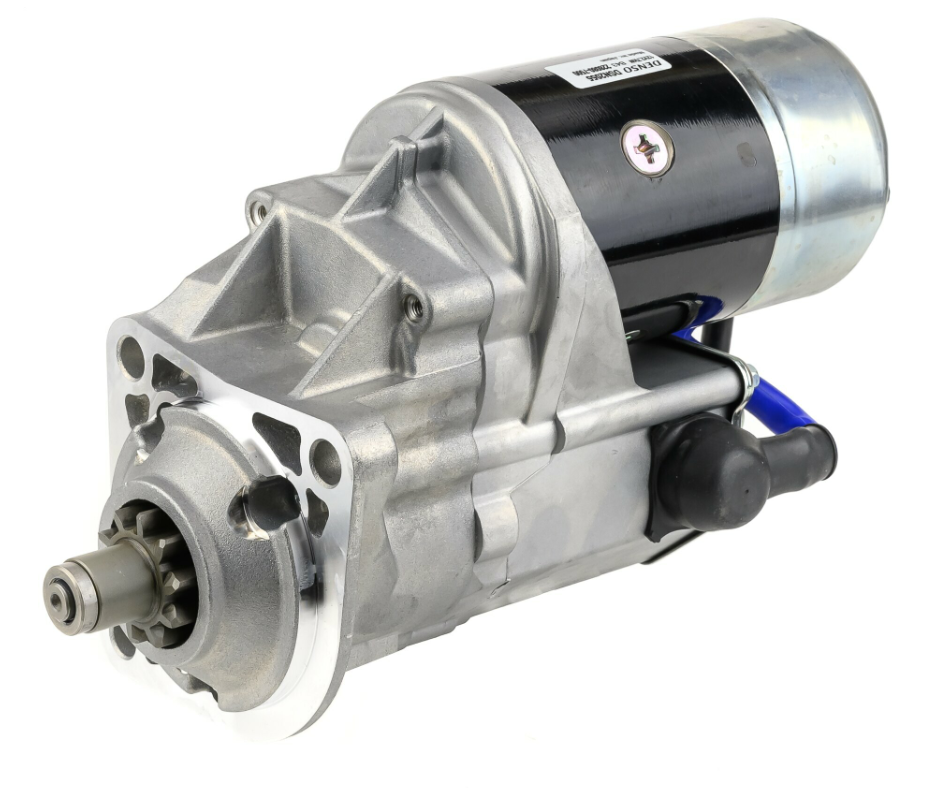

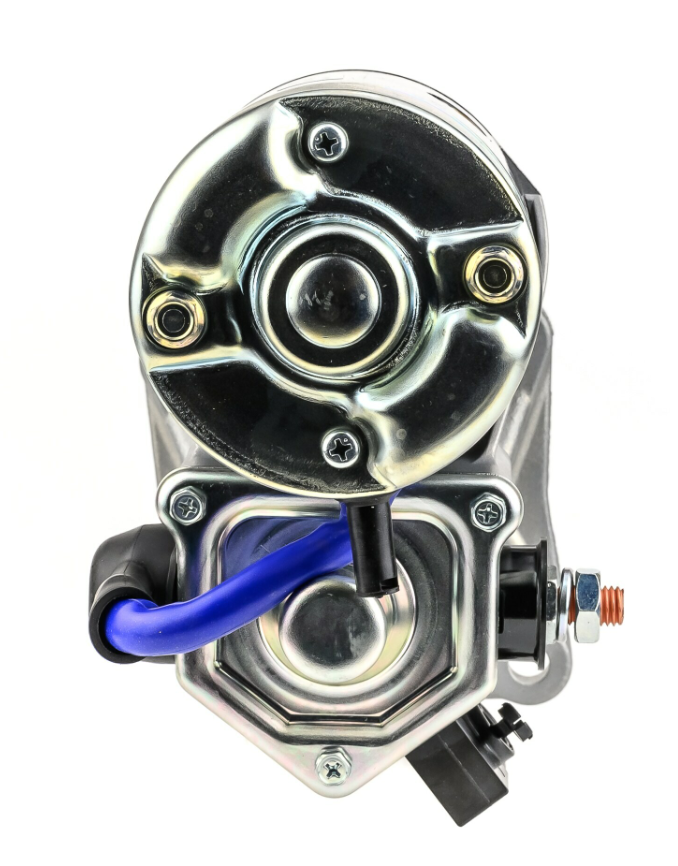

The Denso Gear Reduction Starter Motor is a 12V, 2.7kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting an extensive range of Caterpillar skid steer loaders and multi-terrain loaders across the 200 series, as well as the 906 wheel loader.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | 216, 226, 228, 232, 236, 242, 246, 247, 248, 252, 257, 262, 267, 277, 287 |
| Caterpillar | 906 (1998-2006) |
Key Features
- 12V, 2.7kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits an extensive range of Caterpillar 200 series skid steer and multi-terrain loaders
- Fits Caterpillar 906 wheel loader
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2055 | Reference number |
| 228000-7500 | Denso |
| 228080-7500 | Denso |
| 144-9955 | Caterpillar |
| 461-8765 | Caterpillar |

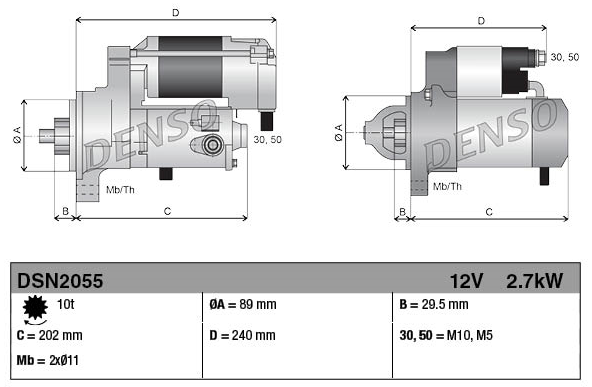

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.7 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 2 x 11.0mm / - |
| Spacing flange to flywheel | 29.5 mm |
| Installation length | 240.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010140 |
| Weight | 8.89 kg |
| Condition | New |
