Denso Gear Reduction Starter Motor 12V 2.7kW - Cummins 3971610
Denso Gear Reduction Starter Motor 12V 2.7kW - Cummins 3971610 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

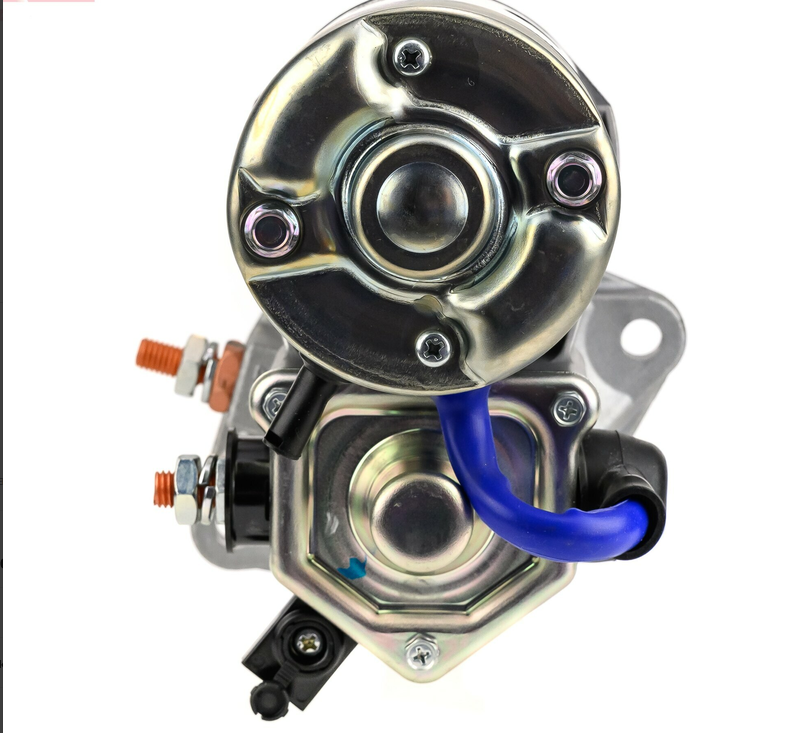

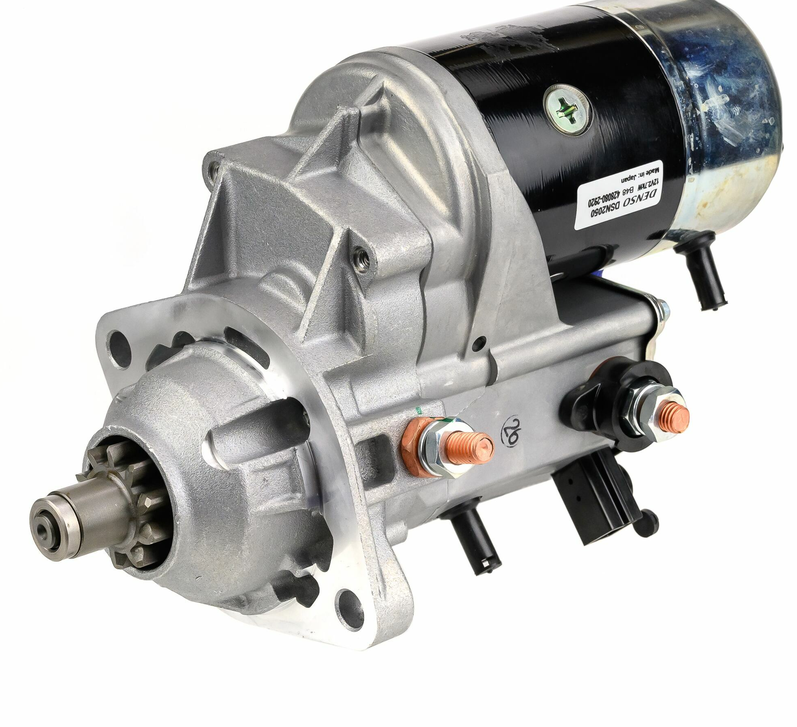

Denso gear reduction starter motor with a nominal voltage of 12V and nominal power of 2.7kW. It has a 10-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M10) and terminal 50 (M5).

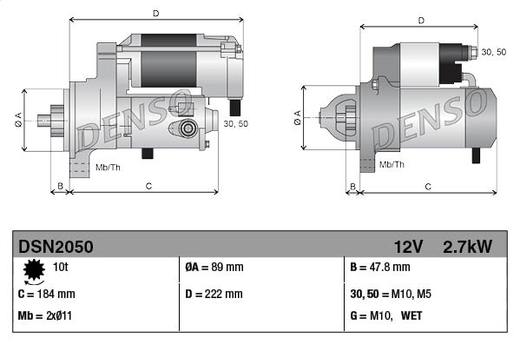

The unit has an installation length of 222.0mm, a fitting diameter of 89.0mm, and a spacing of 47.8mm from flange to flywheel. It is fitted using 2 x 11.0mm holes. This part carries the reference number DSN2050 and has confirmed cross-references to Cummins engine applications.
Fitment
| Brand | Series/Type |
|---|---|
| Cummins | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 12V, nominal power 2.7kW
- 10-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M10) and terminal 50 (M5) connections
- Confirmed fitment: Cummins engines (specific models not supplied)
- 5 OE cross-reference numbers (Cummins and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2050 | Reference number |
| 428000-2870 | Denso |
| 428000-2920 | Denso |
| 428080-2920 | Denso |
| 3971610 | Cummins |
| 3971615 | Cummins |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 12V |
| Nominal power | 2.7kW |
| No. of pinion teeth | 10 |
| Holes/PCD | 2 x 11.0mm |
| Spacing flange to flywheel | 47.8mm |
| Installation length | 222.0mm |
| Fitting diameter | 89.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), terminal 50 (M5) |
| Part number | 3780010137 |
| Reference number | DSN2050 |
| Weight | 8.90 kg |
| EAN | 8717613113967 |
| Condition | New |
