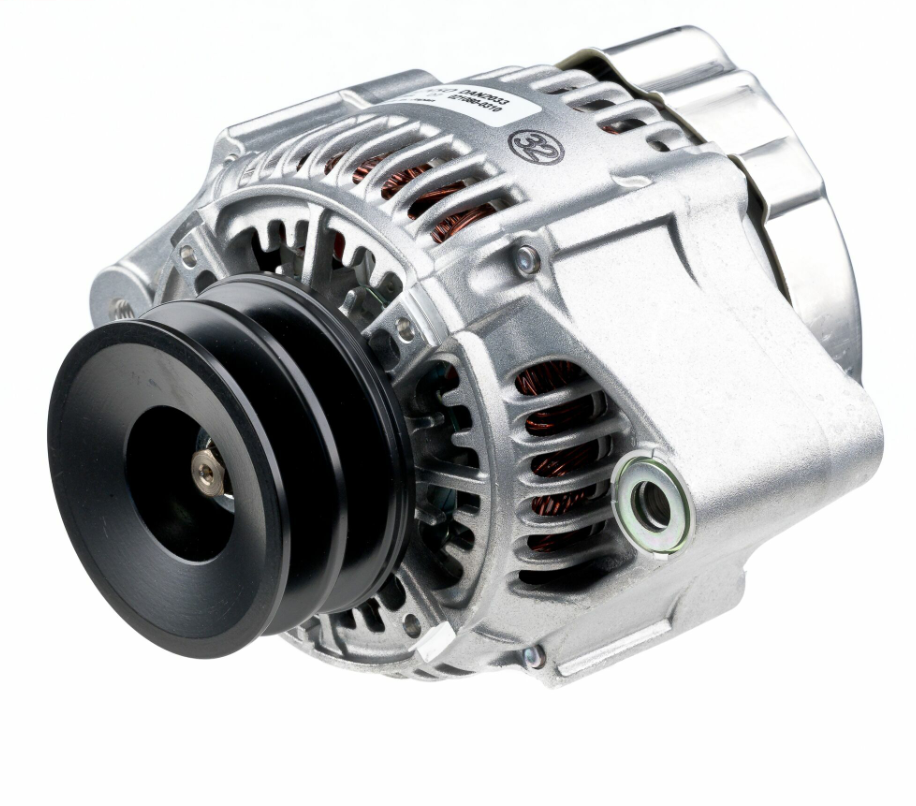

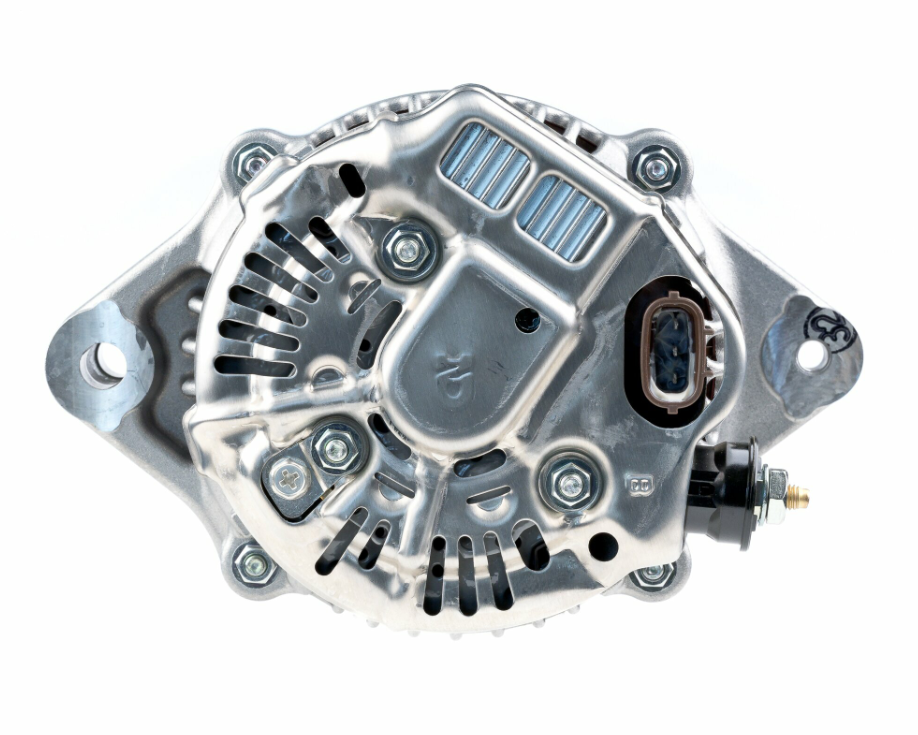

The Denso Alternator is a 14V, 90A unit supplied with clockwise rotation, featuring a 74mm pulley and 58mm flange size. It is a direct fit replacement using original manufacturer specifications, suiting the Caterpillar 400 series backhoe loaders.
Cross-referencing Denso and Caterpillar OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | 416D, 420D, 428D, 430D, 432D, 438D, 442D |
Key Features
- 14V, 90A alternator
- Clockwise rotation
- 74mm pulley diameter
- 58mm flange size
- Fits Caterpillar 400 series backhoe loaders (416D-442D)
- Cross-references seven OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN2033 | Reference number |
| 021080-0310 | Denso |
| 101211-9010 | Denso |
| 101211-9020 | Denso |
| 0R-4328 | Caterpillar |
| 0R-9274 | Caterpillar |
| 105-2813 | Caterpillar |
| 105-2814 | Caterpillar |

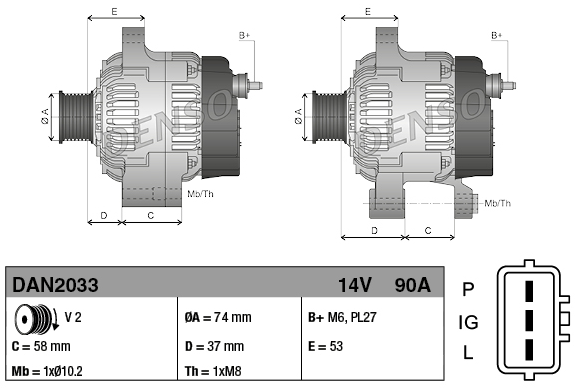

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 90 A |
| Pulley diameter | 74 mm |
| Pulley spacing | 37 mm |
| Flange size | 58 mm |
| Mounting hole | 1x M8 |
| Belt tension hole | 1x 10.2mm |
| Direction of rotation | Clockwise |
| Part number | 3780010290 |
| Weight | 5.94 kg |
| Condition | New |
