Denso Alternator 14V 45A - Kubota R520, Schäffer 860

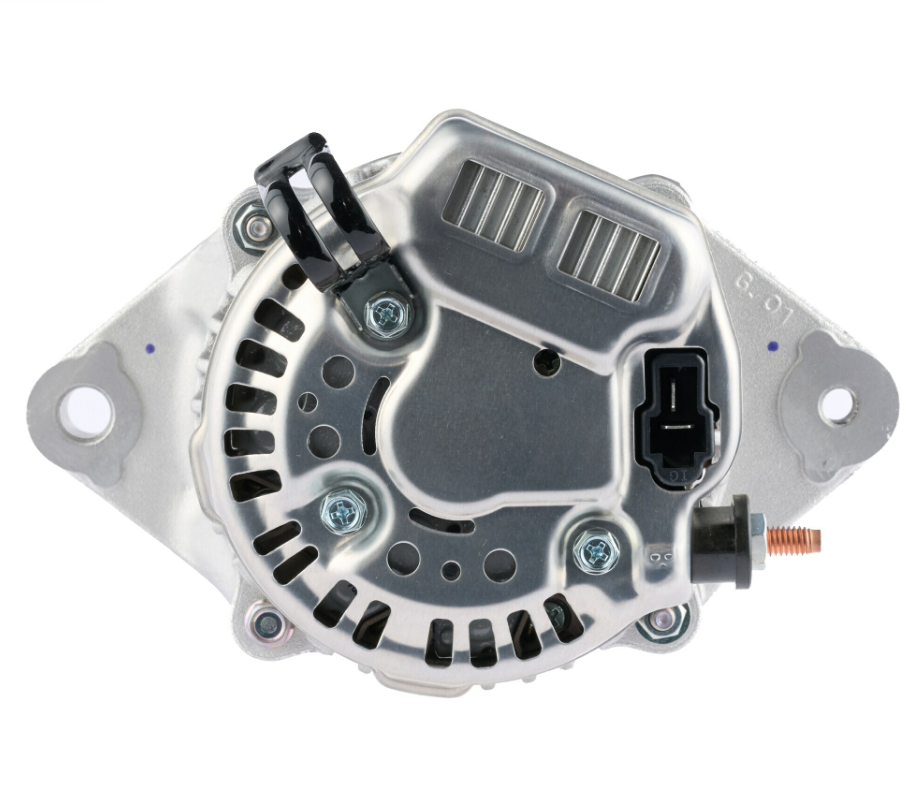

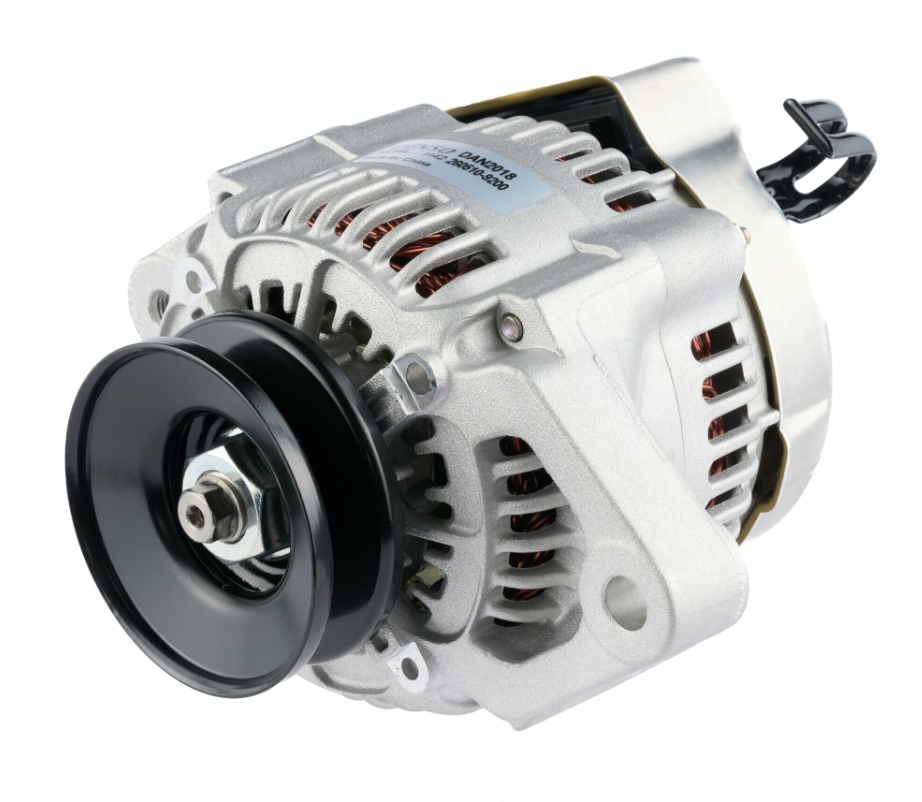

The Denso Alternator is a 14V, 45A unit supplied with clockwise rotation, featuring a 69mm pulley, 21mm flange size, and Form B configuration. It connects via B+ (M6) and PL02 terminals, and is a direct fit replacement using original manufacturer specifications, suiting the Kubota R520 wheel loader and Schäffer 800 series (860).
Cross-referencing an extensive range of Denso and Kubota OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | R520 |
| Schäffer | 800, 860 |
Key Features
- 14V, 45A alternator
- Clockwise rotation
- 69mm pulley diameter
- Form B configuration
- 21mm flange size
- Connections: B+ (M6), PL02
- Fits Kubota R520 and Schäffer 860
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN2018 | Reference number |
| 021080-0870 | Denso |
| 100211-6800 | Denso |
| 100211-6801 | Denso |
| 100211-6802 | Denso |
| 100211-6803 | Denso |
| 100211-6804 | Denso |
| 17356-64011 | Kubota |
| 17356-64012 | Kubota |
| 17356-64014 | Kubota |
| 17356-64015 | Kubota |
| 17356-6401-0 | Schäffer |

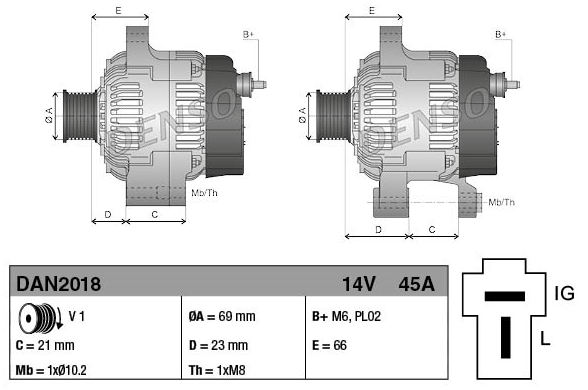

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 45 A |
| Pulley diameter | 69 mm |
| Pulley spacing | 23 mm |
| Flange size | 21 mm |
| Form | B |
| Mounting hole | 10.2mm |
| Connections | B+ (M6), PL02 |
| Direction of rotation | Clockwise |
| Part number | 3780010080 |
| Weight | 3.56 kg |
| Condition | New |
