JFC Agri Dumpy Tip Over Drinker Blue | Galvanised Frame Livestock D...

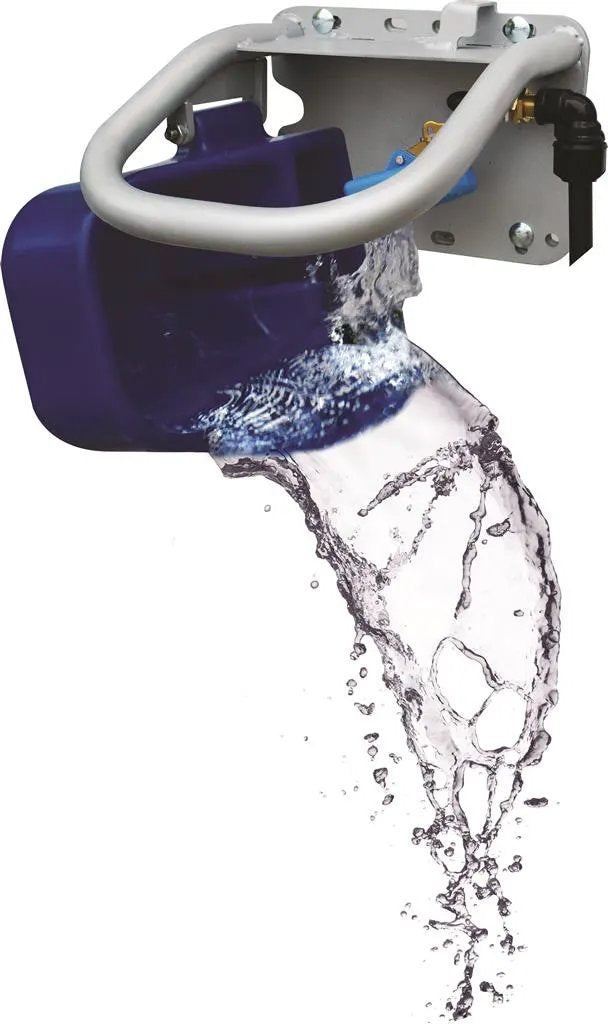

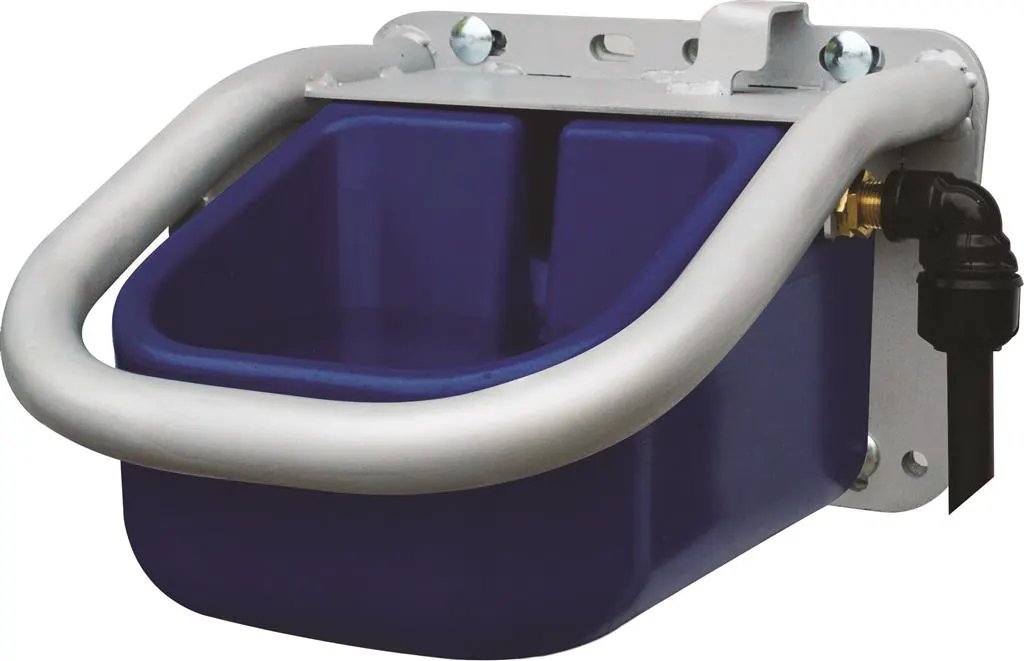

The JFC Agri DBL9 Dumpy Tip Over Drinker is a twin-wall polyethylene livestock drink bowl in blue, fitted with a built-in galvanised steel protection frame for added strength and durability. Designed for easy cleaning, the bowl tips 180 degrees at the push of a button — gravity does the work, emptying all contents before the bowl returns automatically to its working position. No lifting required.

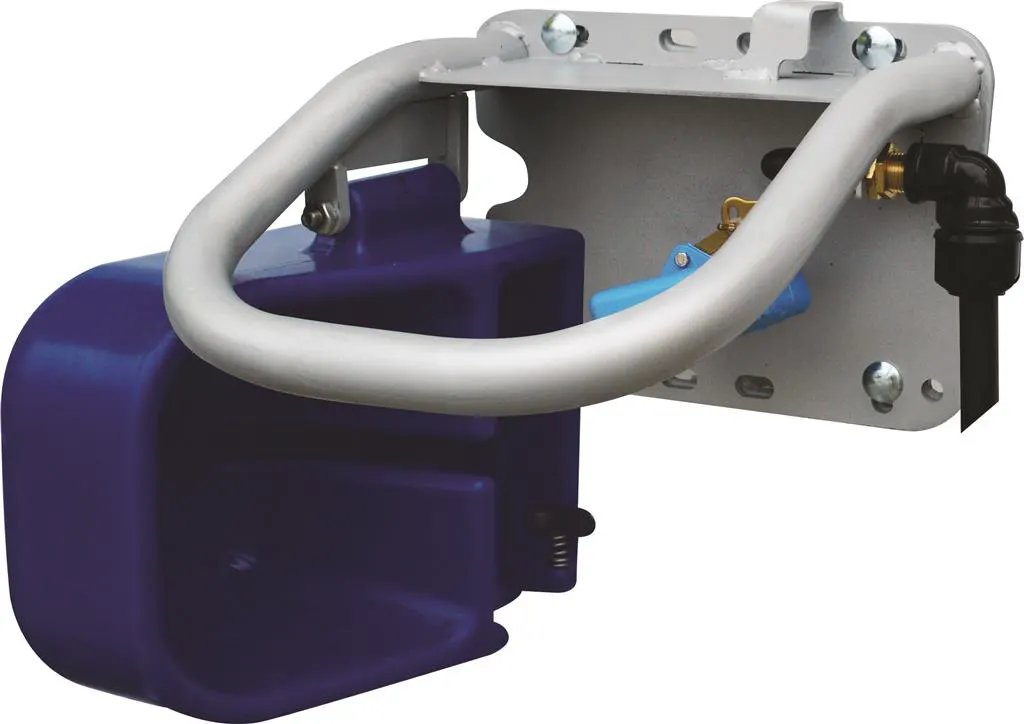

The brass float valve is mounted directly to the steel frame rather than the bowl, keeping it fixed in position and eliminating the risk of damage during tipping or aggressive use. Fitted with a ½" brass float valve capable of delivering up to 9 litres per minute at 3 bar pressure, with a refill time of approximately 20 seconds. Maximum operating pressure is 4 bar.
Manufactured from tough, frost-resistant polyethylene with a smooth finish and curved profile for animal safety. Suitable for indoor and outdoor use. Must be connected via a break tank or header tank in compliance with UK water byelaws.
| Specification | Detail |
|---|---|
| Product Code | DBL9 |
| Colour | Blue |
| Dimensions | 340L × 230W × 360H (mm) |
| Net Weight | 10 kg |
| Valve | ½" brass float valve |
| Flow rate | Up to 9L/min at 3 bar |
| Refill time | Approx. 20 sec at 3 bar |
| Max pressure | 4 bar |
| Frame | Galvanised steel protection frame |
| Emptying mechanism | Gravity-operated tip, 180° rotation |
| Construction | Double-wall polyethylene |
| Origin | Ireland |
| Use | Internal and external |
Please note: UK water byelaws require this bowl to be connected via a break tank or header tank.
If you are ordering larger quantities, please contact us. Thank you.
