MOSFET Regulator Rectifier – Arctic Cat / Kawasaki / Suzuki / Honda...

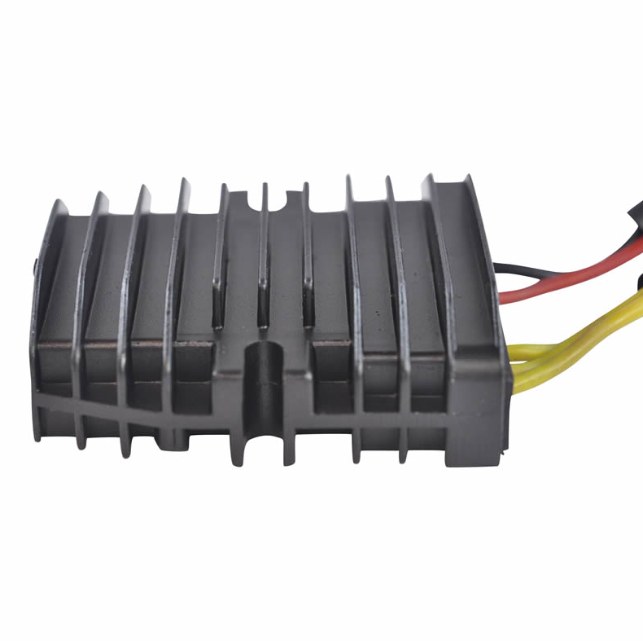

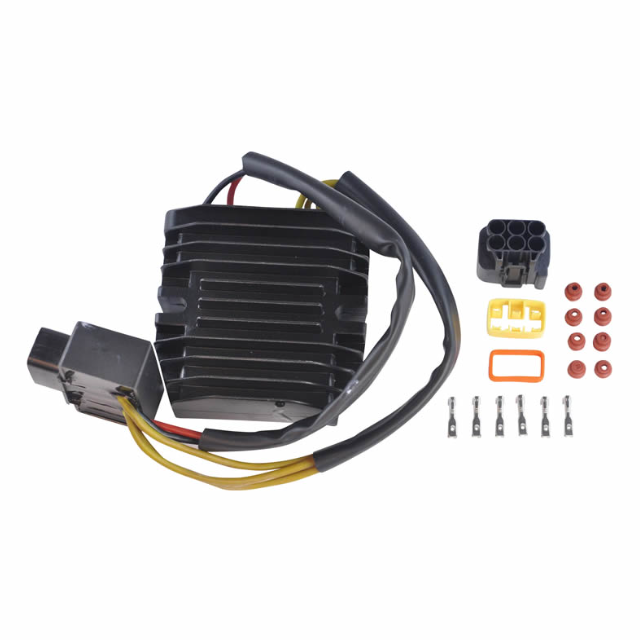

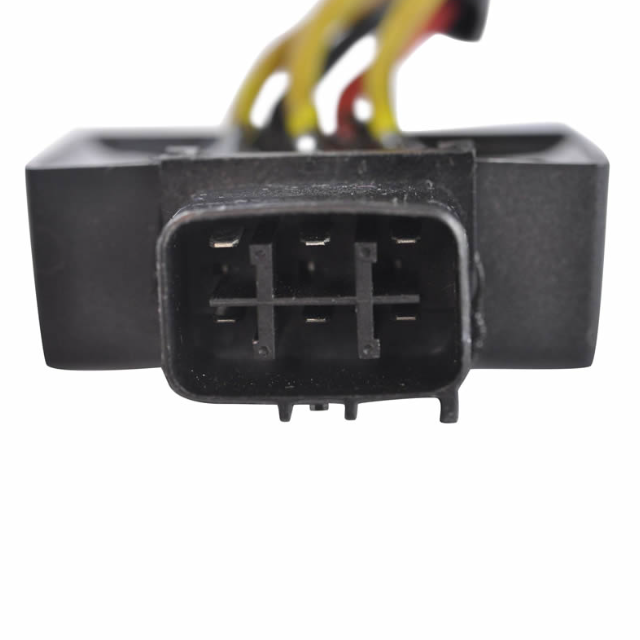

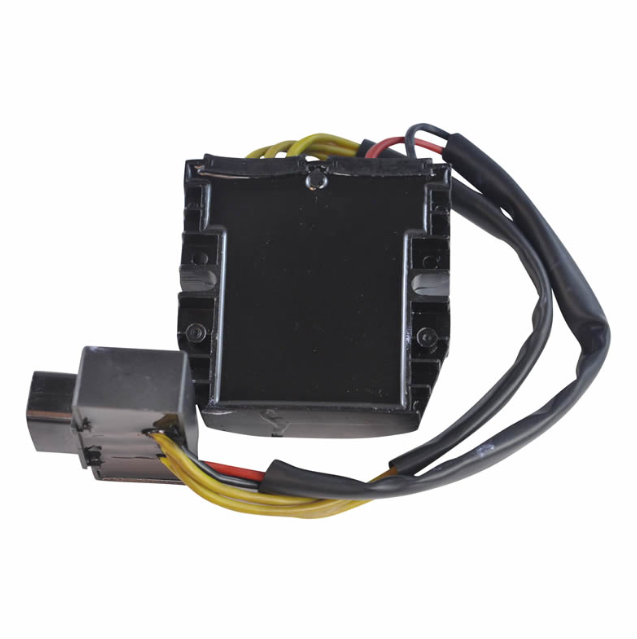

An advanced MOSFET-type replacement regulator rectifier compatible with a wide range of Arctic Cat, Kawasaki, Suzuki, Honda, and Yamaha ATV and UTV models produced between 2001 and 2017. Unlike conventional diode-style regulators, this MOSFET design runs significantly cooler and features built-in overheat protection - temporarily shutting off to cool down rather than burning out. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink. Cross-references OEM part numbers across all supported manufacturers for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
Arctic Cat – ATV and UTV
| Model | Year Range |
|---|---|
| 450 | 2010–2012 |
| 500 Automatic | 2013–2017 |
| 550 EFI F/C | 2010–2013 |
| 550 H1 EFI F/C | 2010 |
| 650 H1 | 2005–2011 |
| 700 | 2006–2012 |
| 700 H1 | 2008–2011 |
| 1000 | 2011–2014 |
| 1000 XT | 2013–2014 |
| Mudpro 650 | 2010 |
| Mudpro 700 | 2009–2012 |
| Mudpro 1000 | 2010–2012 |
| Prowler 550 | 2009–2014 |
| Prowler 650 | 2006–2009 |
| Prowler 700 | 2008–2012 |
| Prowler 1000 | 2009–2014 |
| TBX 650 | 2007, 2009 |
| TBX 700 | 2010–2012 |
| Thundercat 1000 | 2008–2010 |
| TRV 400 | 2009–2014 |
| TRV 450 | 2011–2012 |
| TRV 500 | 2013–2015 |
| TRV 550 | 2010–2013 |
| TRV 650 | 2007–2009 |
| TRV 700 | 2008–2012 |
| TRV 700 H1 EFI F/C | 2010 |
| TRV 1000 | 2009–2012 |
| XR 500 | 2015 |
Honda – ATV
| Model | Year Range |
|---|---|
| TRX 500 Fourtrax Foreman Rubicon FA | 2001–2004 |
| TRX 500 Fourtrax Foreman Rubicon FGA | 2004 |
Kawasaki – ATV and UTV
| Model | Year Range |
|---|---|
| KAF 620 Mule 3000 | 2001–2008 |
| KAF 620 Mule 3010 | 2001–2008 |
| KAF 620 Mule 3020 | 2001–2002 |
| KRF 750 Teryx | 2008–2013 |
| KVF 650 Brute Force HD i | 2006–2010 |
| KVF 650 Brute Force i | 2006–2013 |
| KVF 750 Brute Force i | 2005–2011 |
Suzuki – ATV
| Model | Year Range |
|---|---|
| LTA 400 Eiger | 2002–2007 |
| LTA 400 KingQuad | 2008–2010 |
| LTA 450X KingQuad | 2007–2010 |
| LTA 500F Vinson | 2002–2007 |
| LTA 500X KingQuad | 2009, 2011–2014 |
| LTA 700X KingQuad | 2006–2007 |
| LTA 750 KingQuad | 2008–2013 |
| LTF 400 Eiger | 2002–2007 |
| LTF 400 KingQuad | 2008–2009 |
| LTF 500F Vinson | 2003–2007 |
Yamaha – ATV
| Model | Year Range |
|---|---|
| YFM 450 Grizzly EPS | 2011–2014 |
Key Features
- Advanced MOSFET design — runs cooler than OEM diode-style regulators
- Built-in overheat protection — shuts off temporarily rather than burning out
- Covers Arctic Cat, Honda, Kawasaki, Suzuki, and Yamaha ATV and UTV variants
- Year range 2001–2017
- Higher-grade electrical components and improved heat sink
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 0824-020 | Arctic Cat |
| 0824-037 | Arctic Cat |
| 710000908 | Can-Am |
| 21066-0030 | Kawasaki |
| 21066-0033 | Kawasaki |
| 21066-0705 | Kawasaki |
| 21066-0712 | Kawasaki |
| 21066-0717 | Kawasaki |
| 21066-0732 | Kawasaki |
| 21066-1127 | Kawasaki |
| 21066-3717 | Kawasaki |
| 21066-3718 | Kawasaki |
| 31600-HN2-013 | Honda |
| 32800-06G00 | Suzuki |
| 32800-38F10 | Suzuki |
| 32800-42F00 | Suzuki |
| 4XY-81960-00-00 | Yamaha |
Specifications
| Specification | Detail |
|---|---|
| Component | MOSFET Regulator Rectifier |
| Type | MOSFET (replaces OEM diode-style) |
| Voltage | 12V |
| Overheat Protection | Yes — thermal shutdown and recovery |
| Application | Arctic Cat / Honda / Kawasaki / Suzuki / Yamaha |
| Year Range | 2001–2017 |
| ATV City Part Number | RM30801H |
| Condition | New |
