Starter Motor | Kawasaki KAF620 Mule 4000 / 4010 (2009–2020) | OEM ...

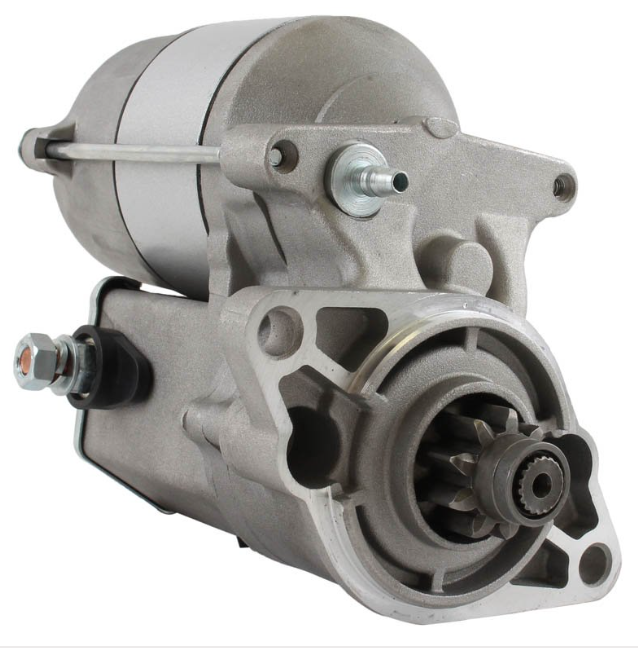

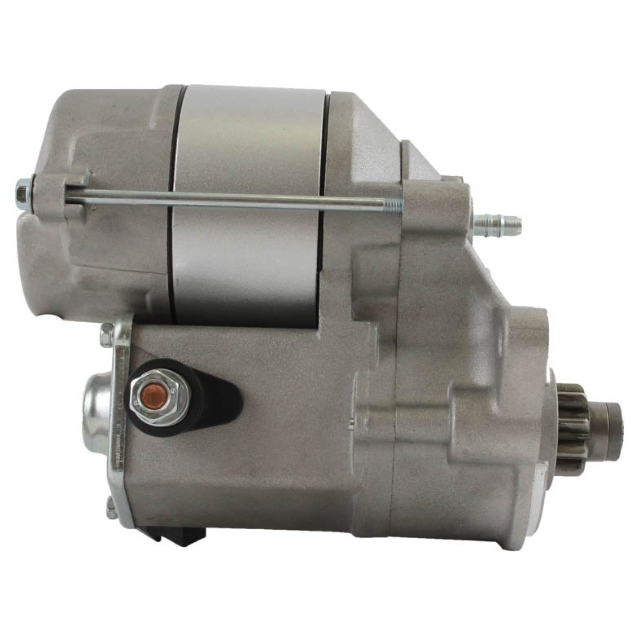

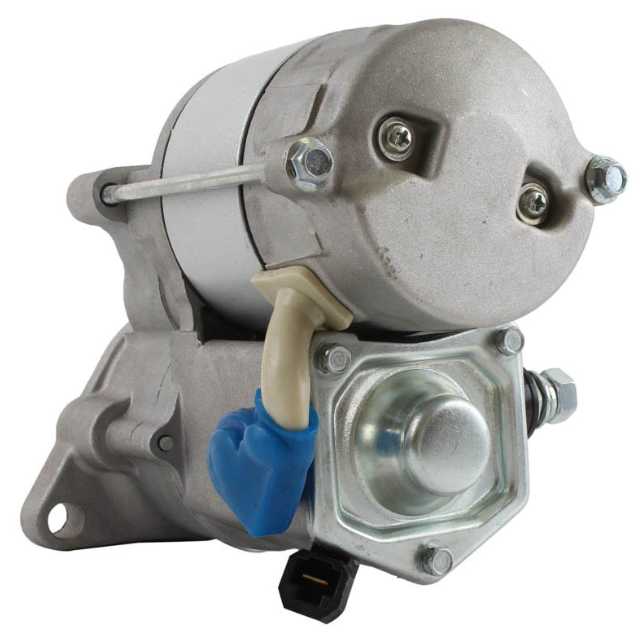

A starter motor for the Kawasaki KAF620 Mule 4000 and Mule 4010 produced between 2009 and 2020, covering standard, Trans 4×4, Camo, Hardwoods Green, Realtree APG HD, and Special Edition variants. Manufactured from premium materials for reliable starting performance in demanding utility applications.
This unit features a 12-volt electrical system with counter-clockwise (CCW) rotation, 9-tooth drive gear, and offset gear reduction (OSGR) design.
Important: This starter (Denso 228000-8842) differs from the SND0459 (Denso 228000-8841) in drain tube and breather tube configuration and the two units should not be used interchangeably. This unit has no drain tubes and features a breather tube nipple on the front of the DE frame for long breather tube attachment.
Key Features
- Starter motor for Kawasaki KAF620 Mule 4000 and 4010 (2009–2020)
- 12-volt electrical system, counter-clockwise rotation, 9-tooth drive, OSGR type
- Cross-references Kawasaki OEM 21163-2134 and Denso 228000-8842
- Aftermarket reference: 410-52383
- Not interchangeable with SND0459 (228000-8841)
OEM Cross-Reference
| Reference | Part Number |
|---|---|
| Kawasaki OEM | 21163-2134 |
| Denso | 228000-8842 |
| Arrowhead | SND0690 |
| Lester | 16011, 16011N |
| Aftermarket Ref | 410-52383 |
Vehicle Fitment
| Model | Years |
|---|---|
| KAF620 Mule 4000 | 2011–2020 |
| KAF620 Mule 4000 Trans | 2018–2020 |
| KAF620 Mule 4010 4×4 | 2011–2020 |
| KAF620 Mule 4010 4×4 Spec. Ed. | 2016–2018 |
| KAF620 Mule 4010 Trans 4×4 | 2010–2020 |
| KAF620 Mule 4010 Trans 4×4 Camo | 2015–2020 |
| KAF620 Mule 4010 Trans 4×4 Hardwoods Green | 2009–2010 |
| KAF620 Mule 4010 Trans 4×4 Realtree APG HD | 2009–2014 |
| KAF620 Mule 4010 Trans 4×4 Spec. Ed. | 2016–2018 |
