CFMOTO CForce 520 Hunter Green | 495cc 4WD ATV with EPS & LED L...

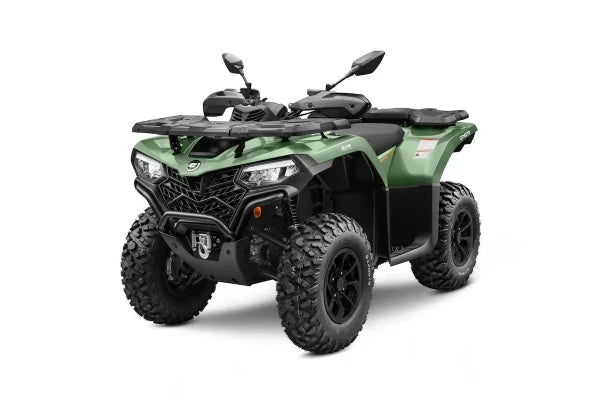

The CFMOTO CForce 520 is a 495cc mid-size ATV built for demanding agricultural and all-terrain use. This latest generation model brings a lighter but stronger frame, 25% tighter turning radius over the previous model, improved cooling with leg area temperatures 25% lower than before, and the lowest in-class vibration across the full torque range. Standard equipment includes electronic power steering, RideVision LED lighting, 12in alloy wheels, a larger 16.5 litre fuel tank and increased storage space.

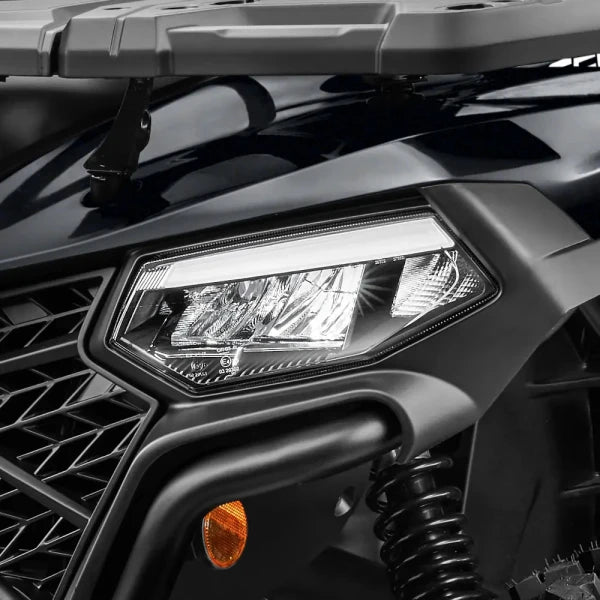

Electronic power steering provides variable assistance relative to speed - greater assistance at low speeds for tight manoeuvring, reducing at higher speeds for confident handling. RideVision LED lights are fitted as standard for improved visibility in low light conditions.

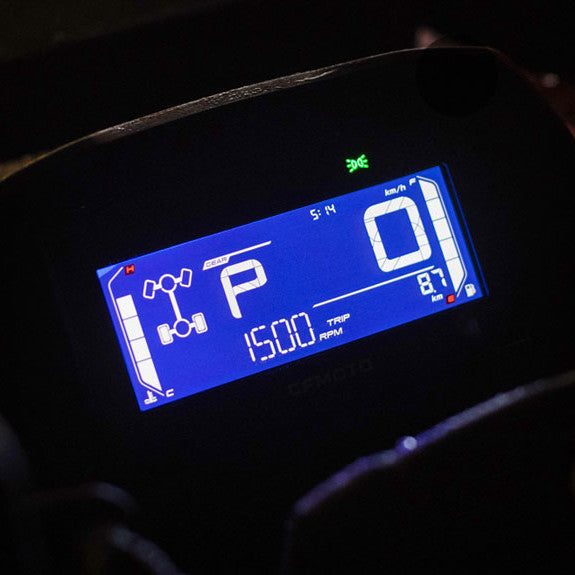

Power comes from a 495cc single-cylinder liquid-cooled four-stroke engine with Bosch EFI fuel injection, producing 25.5kW and 39Nm of torque. Drive is via CVT transmission with switchable 2WD/4WD. Independent double A-arm suspension with adjustable shocks is fitted front and rear, with 249mm of ground clearance. Towing capacity is rated at 802kg. A 3.5in LCD dashboard provides clear readability of key rider information.
All new CFMOTO ATVs include a 2-year parts and labour warranty. Terms and conditions apply — contact DGT Agri for details.
CFMOTO recommends that the rider always wears a helmet, eye protection and appropriate protective clothing.
Key Features
- 495cc liquid-cooled Bosch EFI engine
- Electronic power steering (EPS)
- RideVision LED lights as standard
- Switchable 2WD/4WD
- 249mm ground clearance
- 802kg towing capacity
- 25% tighter turning radius over previous model
- Lowest in-class vibration across full torque range
- Independent double A-arm suspension, front and rear
- Adjustable spring pre-load oil damped shocks
- 12in alloy wheels fitted as standard
- 16.5L fuel tank
- 3.5in LCD dashboard
- Higher air intake position
- Arched front A-arms for increased ground clearance
- 2-year parts and labour warranty
Specifications
| Specification | Detail |
|---|---|
| Engine Type | Single-Cylinder, Liquid-Cooled, 4-Stroke, SOHC, 4-Valve |
| Displacement | 495cc |
| Maximum Power | 25.5kW at 6,750rpm (34hp) |
| Maximum Torque | 39Nm at 5,750rpm |
| Fuel Supply | Bosch EFI |
| Ignition | ECU |
| Transmission | CVT |
| Drive | Switchable 2WD / 4WD |
| Power Steering | Electronic (EPS) |
| Front Suspension | Double A-Arm Independent, Adjustable Pre-Load |
| Rear Suspension | Double A-Arm Independent, Adjustable Pre-Load |
| Rim Size | 12in Front and Rear |
| Lighting | RideVision LED |
| Length x Width x Height | 2,186 x 1,157 x 1,210mm |
| Wheelbase | 1,288mm |
| Ground Clearance | 249mm |
| Minimum Turning Diameter | 5.6m (±0.5m) |
| Dry Weight | 344kg |
| Towing Capacity | 802kg |
| Fuel Capacity | 16.5L |
| Warranty | 2-Year Parts and Labour |
Please call us on 01341 241319 to confirm availability and current delivery times before ordering.
