Top End Gasket Set – Honda TRX500 Foreman FA / FE / FM / FPA / FPE ...

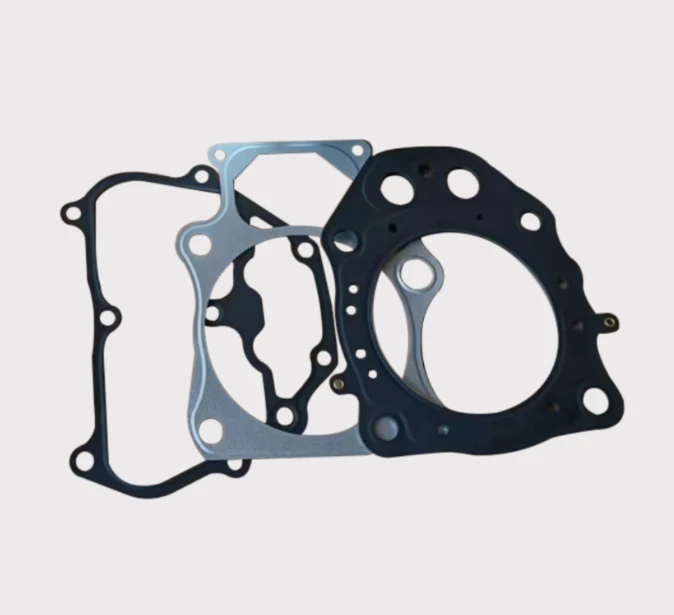

This aftermarket replacement Top End Gasket Set is designed for reliable sealing during top-end rebuilds on Honda TRX500 Foreman models. It includes the essential head gasket, base gasket, and rocker cover gasket to restore compression and prevent leaks under demanding off-road conditions. Precision-cut and manufactured to tight tolerances, these gaskets provide a dependable seal across the FA, FE, and FM variants in the 2012–2019 range. This is an aftermarket replacement part, not Honda OEM.
Comprehensive Vehicle Fitment
| Manufacturer | Models / Series | Years / Details |
|---|---|---|
| Honda | TRX500FA Foreman 4x4 | 2012–2019 |
| Honda | TRX500FE Foreman 4x4 ES EPS | 2012–2019 |
| Honda | TRX500FM Foreman 4x4 EPS | 2012–2019 |
| Honda | TRX500FPA Foreman 4x4 AT w/ PS | 2012–2019 |
| Honda | TRX500FPE Foreman 4x4 ES EPS | 2012–2019 |
| Honda | TRX500FPM Foreman 4x4 EPS | 2012–2019 |
Product Specifications
| Specification | Details |
|---|---|
| OEM Reference Part Numbers | 12315-HR0-F01, 12251-HR0-F01, 91301-428-003, 12208-MBB-003, 12191-HR0-F01, 18291-MN4-920 |
| Type | Top End Gasket Set (Head/Base/Rocker) |
| Manufacturer | Aftermarket Replacement Quality |
| Material | High-quality gasket materials chosen for durability and reliable sealing under heat and pressure |
| Included Components | Head gasket, base gasket, and rocker cover gasket (head/base/rocker gaskets only) |
| Condition | 100% New Aftermarket |
| Application | Top-end rebuild for Honda TRX500 FA/FE/FM/FPA/FPE/FPM Foreman models (2012–2019) |
OEM Cross-Reference Information
| Original Part Number | Component | Cross-Reference Notes |
|---|---|---|
| 12315-HR0-F01 | Cylinder Head Gasket | Genuine Honda part number for TRX500 Foreman models (2012-2019) |
| 12251-HR0-F01 | Cylinder Base Gasket | Genuine Honda part number for cylinder base seal |
| 91301-428-003 | O-Ring (10.8x2.5mm) | Genuine Honda part number for oil passage sealing |
| 12208-MBB-003 | Dowel Pin | Genuine Honda part number for alignment pin |
| 12191-HR0-F01 | Rocker Cover Gasket | Genuine Honda part number for valve cover seal |
| 18291-MN4-920 | Spark Plug Hole Seal | Genuine Honda part number for spark plug well seal |
OEM cross-reference numbers are provided for reference purposes only. Always verify fitment using your machine's exact model, year, and original part number before ordering.
Why Choose This Top End Gasket Set?
-
Complete Top-End Coverage: Includes all essential gaskets for cylinder head, base, and rocker cover in one convenient kit.
-
OEM Cross-Reference: Cross-references multiple genuine Honda part numbers including 12315-HR0-F01, 12251-HR0-F01, and 12191-HR0-F01 for confident replacement.
-
Direct-Fit Compatibility: Precision-engineered for Honda TRX500FA/FE/FM/FPA/FPE/FPM Foreman models (2012–2019).
-
Comprehensive Sealing: Includes head gasket for compression seal, base gasket for crankcase sealing, and rocker cover gasket to prevent oil leaks.
-
Restores Compression: New head and base gaskets ensure proper cylinder sealing for optimal engine performance.
-
Premium Materials: Manufactured from high-quality gasket materials designed to withstand engine heat and pressure.
-
Precision Manufacturing: Precision-cut and manufactured to tight tolerances for a dependable seal.
Installation Notes:
-
Ensure all mating surfaces are clean and free from old gasket material before installation.
-
Follow manufacturer torque specifications and tightening sequences for cylinder head bolts.
-
Use new gaskets only—do not reuse old gaskets once removed.
-
Check valve clearance after head installation and adjust if necessary.
-
Verify all components are properly seated before reassembling the top end.
-
After installation, run the engine and check for any signs of leaks.
Why Upgrade?
Worn or damaged gaskets can cause compression loss, oil leaks, and contamination—leading to poor performance and potential engine damage. Restore your Honda TRX500 Foreman engine's sealing integrity with this quality aftermarket top end gasket set, designed to keep you working with confidence.
Order your top end gasket set today and get back on the trail with confidence.
